Products Catalogue

SUPPLEMENTARY EQUIPMENT

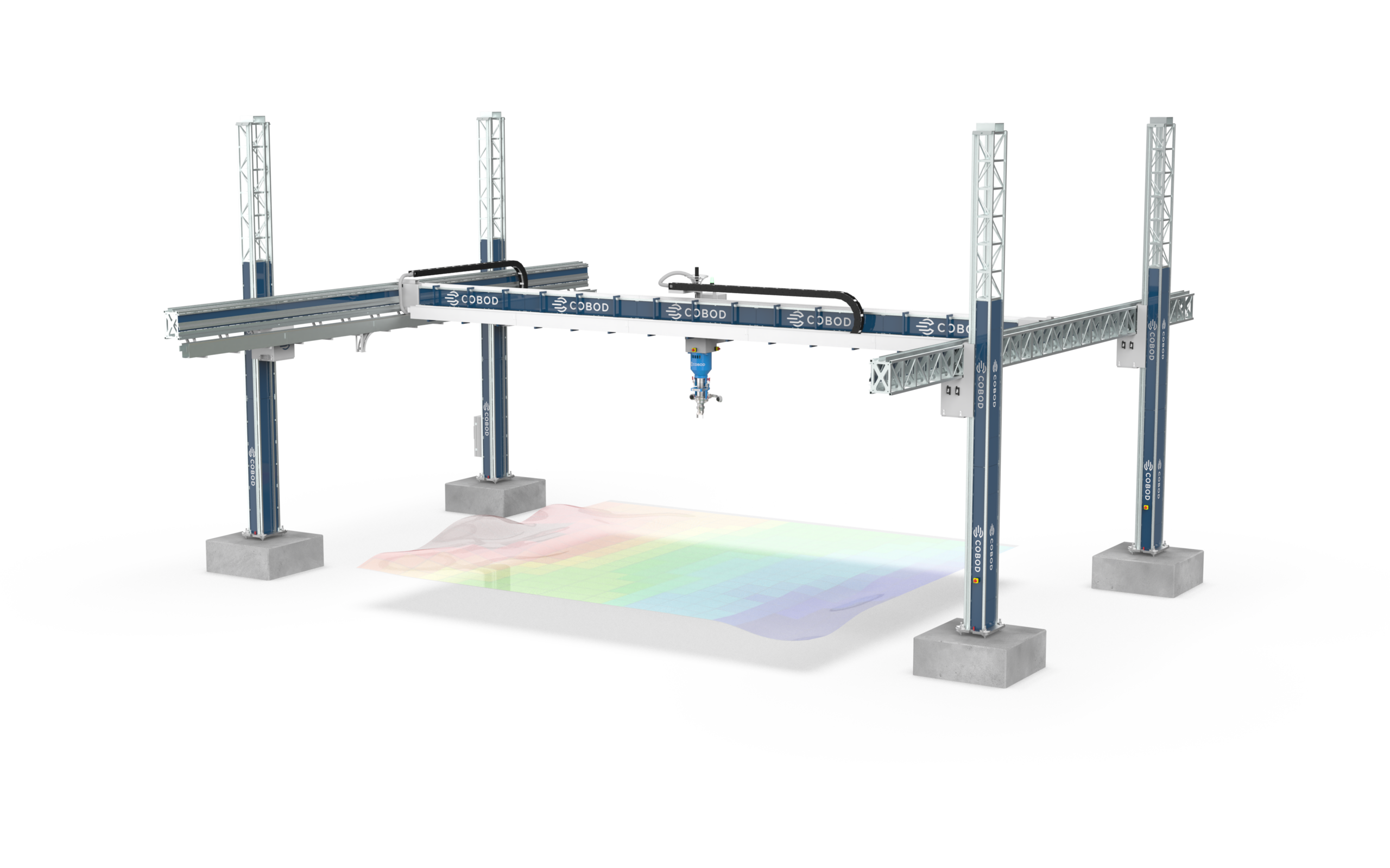

Bed Mesh Levelling 2.0 – Optimize 3D Printing on Uneven Surfaces

COBOD Bed Mesh Levelling 2.0 is an innovative feature designed to address the unique demands of construction 3D printing, ensuring that every layer adheres precisely to your project’s foundation.

Bed Mesh Levelling 2.0 operates seamlessly during the 3D printing file acceptance test, also known as a dry run, just before the actual 3D printing process begins. It scans the surface using an ultrasonic sensor, generating a height map that identifies any foundation irregularities. This map is then used to actively compensate for these irregularities during the printing process, ensuring consistent layer height and impeccable results.

Enhance the precision and efficiency of the 3D construction printing with Bed Levelling, reducing the risk of errors, and optimizing performance even in challenging scenarios!

SUPPLEMENTARY EQUIPMENT

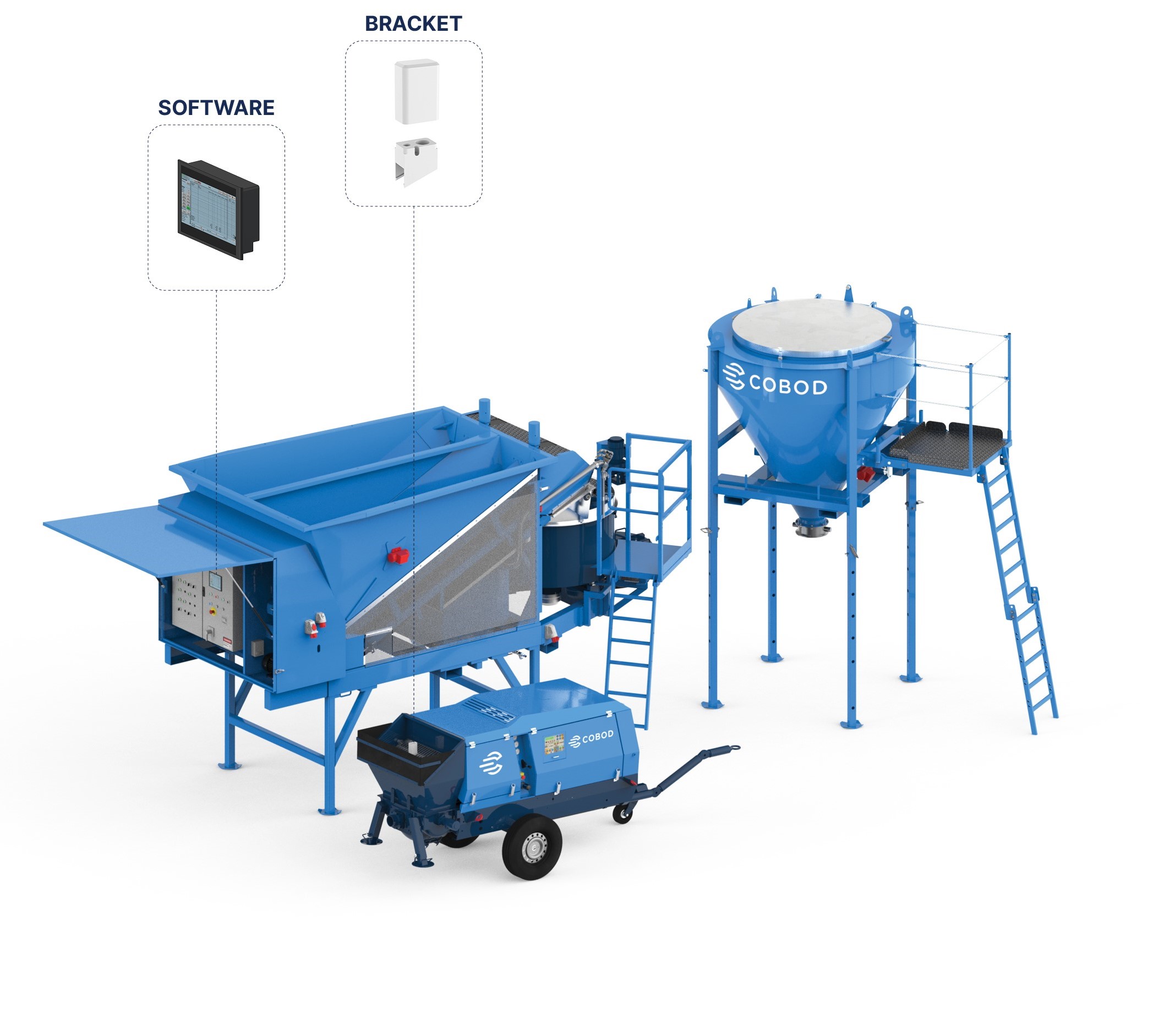

Cruise Control – Enhancing Automation

Introducing Cruise Control, our innovative solution for automating the modification, mixing, and emptying of concrete from the batch plant. This system integrates two essential features: Consistency Control and Auto Empty, designed to streamline your concrete production process.

Consistency Control: This is a vital software enhancement that dynamically adjusts the addition of plasticizers in response to the mixer’s torque. The result is a significant improvement in the workability of the concrete, ensuring consistent quality across all batches.

Auto Empty: As a key hardware update, Auto Empty maintains the optimal concrete level in the pump’s hopper by automatically controlling the batch plant’s discharge gate. When the mixing chamber is empty, the system seamlessly initiates a new batch, maintaining continuous operation and efficiency.

By implementing Cruise Control, the requirement for multiple operators is greatly reduced, with only one material operator needed. This not only simplifies the operational process but also markedly increases workplace safety by reducing human error. The synergistic effect of Consistency Control and Auto Empty leads to a notable 50% increase in concrete output from the batch plant. This efficiency ensures more consistent and reliable concrete production from one batch to the next.

SUPPLEMENTARY EQUIPMENT

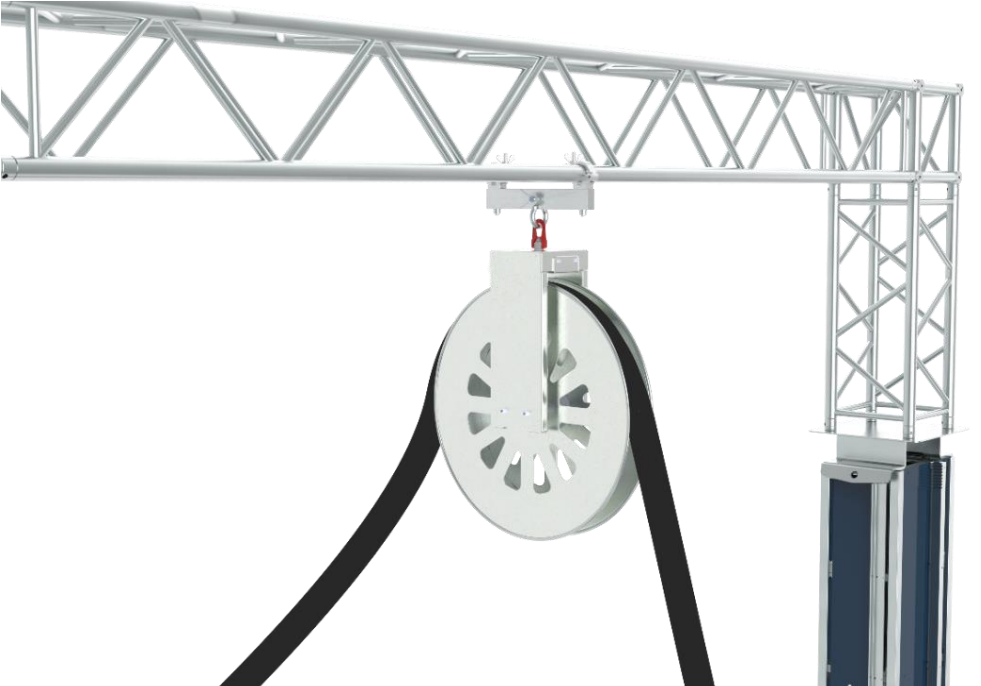

DN50 & DN75 Pulley Wheel – Reliable Material Flow

The COBOD DN50/DN75 Pulley Wheel is designed to facilitate the efficient delivery of material from the Material Delivery System (MDS) to the printhead of the BOD2 3D Construction Printer. Available in two sizes, DN50 and DN75, this pulley wheel ensures smooth and reliable material flow, enhancing the overall performance and precision of your 3D printing operations. Constructed from durable materials, the DN50/DN75 Pulley Wheel offers robust support and is engineered to meet the highest safety and operational standards in the industry.

SUPPLEMENTARY EQUIPMENT

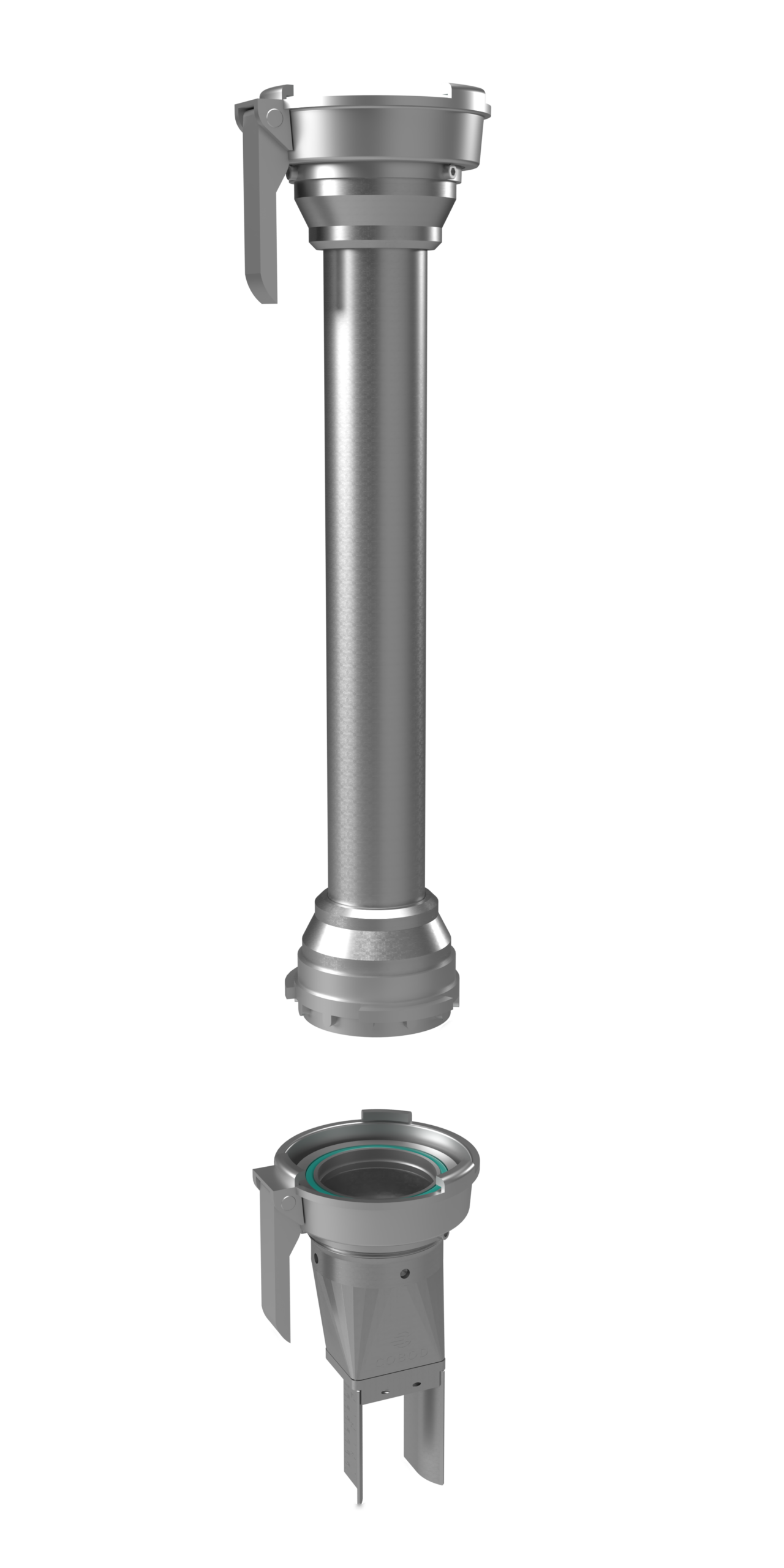

HT Extension Nozzle – Print Effortlessly Around Obstacles and Extend Your Printing Reach

We are excited to introduce our innovation, the HT Extension Nozzle, designed specifically for the BOD2 3D construction printer. With extended reach and unrivaled precision, this add-on is set to transform the way you approach construction.

Compatible with our COBOD Concrete Steel Nozzles in various sizes and the HT Printhead, the HT Extension Nozzle seamlessly integrates into your existing setup. With its user-friendly design, it can be easily attached and detached from the printhead and nozzle using couplings, ensuring a hassle-free experience.



During the installation of the extension nozzle, proper alignment is crucial to maintain printing precision. Misalignment can negatively impact the nozzle’s performance and lead to imprecise prints. Therefore, we emphasize the importance of careful alignment during installation to achieve reliable and accurate results in all your printing operations.With the HT Extension Nozzle, you can effortlessly print around obstacles, navigate intricate designs, and access hard-to-reach areas.

Enhance your projects today. Get the COBOD HT Extension Nozzle.

SUPPLEMENTARY EQUIPMENT

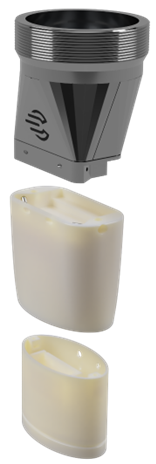

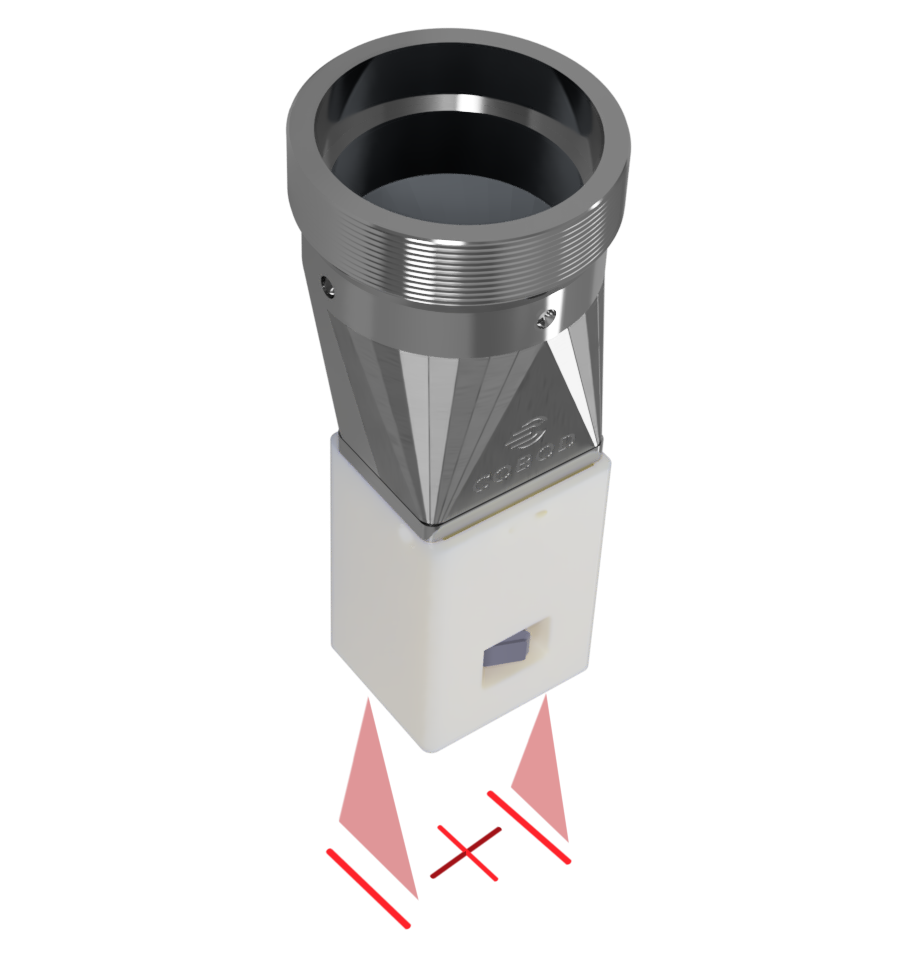

Laser Nozzle – improve Precision and Visualization in 3D Printing

Introducing our Laser Nozzle, a convenient add-on tool designed for the COBOD BOD2 printer. Available in two sizes to fit common nozzle sizes: 50×40 and 80×30, this nozzle enhances the 3D printing process by providing accurate positioning and improved visualization. Say goodbye to guesswork and experience a new level of precision in your prints.

The Laser Nozzle serves multiple functions to simplify and enhance the 3D printing process. Firstly, it facilitates the positioning of the print on the foundation or concrete slab by marking the center of the nozzle during dry runs. This ensures that your print starts in the desired location with precision.

Additionally, the Laser Nozzle displays the positioning of the printed wall, indicating the location of the flaps during the printing process. This unique feature allows you to align your print with greater accuracy and preview the positions of the printed walls beforehand, resulting in improved print quality and reduced errors.

Upgrade your COBOD BOD2 printer with our Laser Nozzle to simplify the printing process, improve print quality, and enjoy a better user experience for your 3D printing projects!

SUPPLEMENTARY EQUIPMENT

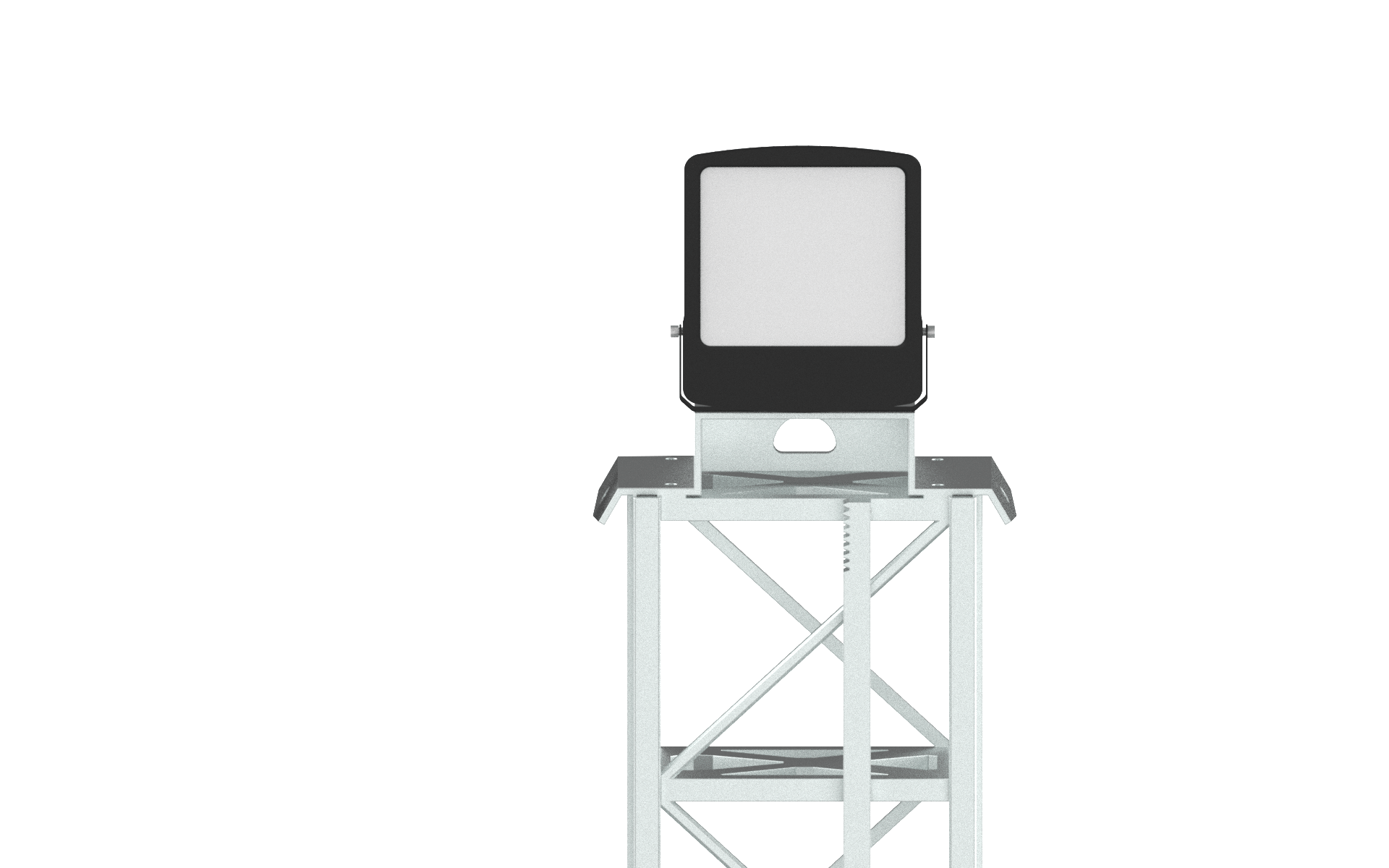

Lighting Kit – Advance Continuous Site Visibility

The COBOD Lighting Kit, integrated with the COBOD BOD2 3D printer, is designed to significantly improve safety and visibility at construction sites.

It incorporates high-intensity LED flood lights that guarantee a minimum level of 100lux of brightness at ground level, even on towering 10-meter-high machines. This kit seamlessly integrates with the printer’s E-box, making installation and operation straightforward.

By prioritizing safety and visibility, the COBOD Lighting Kit reduces the risk of accidents and enhances overall efficiency. Key features include exceptional brightness, PLC control for light management, and uninterrupted lighting during printer shutdown.

Elevate your construction site’s safety and efficiency with the COBOD Lighting Kit!

SUPPLEMENTARY EQUIPMENT

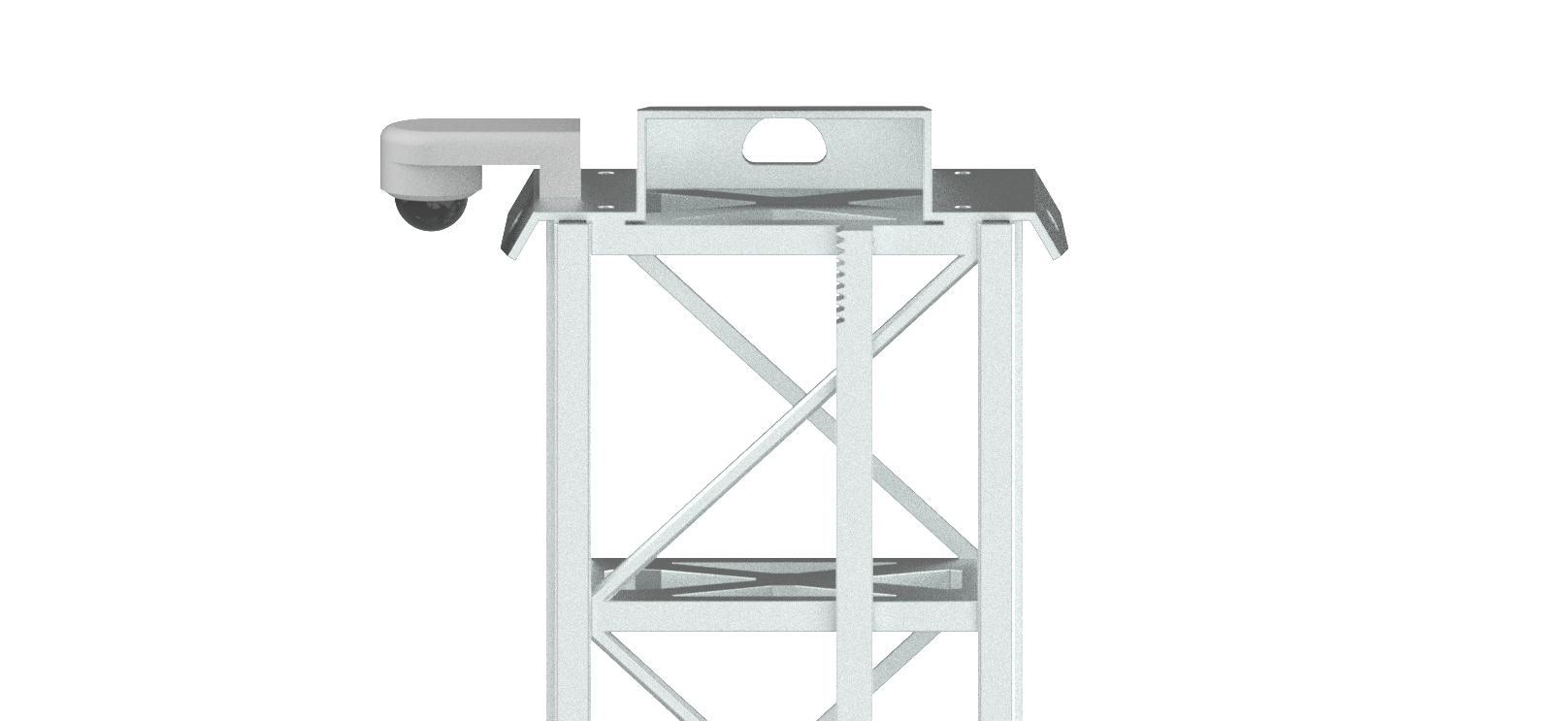

Monitoring Kit – Increase control and Night-Time Surveillance

The COBOD Monitoring Kit represents a comprehensive solution for enhancing construction site surveillance and monitoring.

This kit includes a set of 4MP PTZ cameras, strategically reporting to a dedicated on-site recording hub. Accessibility is seamless through a network port, allowing real-time monitoring and historical review of construction site activities.

Effortless night-time surveillance is made possible by the integration of native IR technology into the cameras, providing clear viewing up to 20 meters whenever the machine is powered.

Additionally, the COBOD Monitoring Kit easily connects with existing machine cameras, guaranteeing your construction site’s complete and comprehensive coverage.

Experience increased precision and safety at the construction site with the COBOD Monitoring Kit!

SUPPLEMENTARY EQUIPMENT

Party trusses – boosted stability for better printing experience

Party Trusses are crucial supplementary equipment, designed to enhance the stability and reliability of the COBOD BOD2 3D Construction Printer. Additionally, these trusses contribute significantly to the overall robustness and precision of the printing process. Available in two options, the single-sided Alu Top Structure and the Full Alu Top Structure, depending on the configuration of the COBOD BOD2 3D Construction Printer.

The party trusses work by fortifying the machine’s structural integrity, effectively minimizing vibrations and ensuring optimal performance even in challenging construction environments. By integrating the trusses into the printer setup, users can confidently tackle complex printing projects with heightened stability and accuracy.

SUPPLEMENTARY EQUIPMENT

RG Clamp – The Concrete Hose Fastening Solution

The RG Clamp is a fundamental addition to the COBOD BOD2 3D Construction Printer setup, designed to securely fasten the concrete hose directly to the X-carriage.

By firmly securing the concrete hose, RG Clamp prevents unwanted hose movement and eliminates the risk of hose pull that could trigger the clickers on the X-carriage. This results in uninterrupted, smooth printing operations.

Additionally, this retrofittable clamp simplifies the printer setup by reducing the number of connection parts required, and it’s compatible with both 50mm (2″) and 75mm (3″) concrete hoses.

SUPPLEMENTARY EQUIPMENT

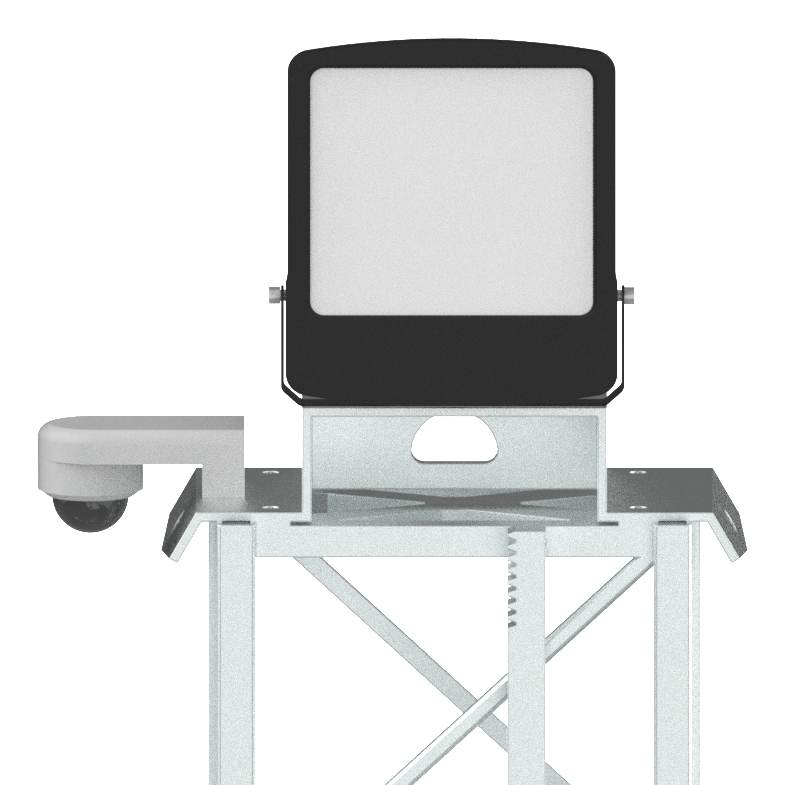

Surveillance and Lighting Kits – Enhance Site Oversight and Security

COBOD Surveillance and Lighting Kits are additional equipment for the COBOD BOD2 3D printer that provide exceptional oversight and security for the construction site.

The surveillance kit comprises high-quality 4MP PTZ cameras that feed real-time video to a recording hub on-site. With network connectivity, you can access live and historical footage remotely, allowing you to monitor your site from anywhere, anytime. The cameras come equipped with native IR technology, enabling clear night-time viewing for up to 20 meters, as long as the machine is powered. Additionally, the kit seamlessly incorporates the existing machine cameras, providing comprehensive coverage.

The lighting kit features powerful LED flood lights, delivering a minimum of 100lux at ground level even on a 10-meter-high machine. These lights can be controlled by the machine’s PLC, allowing you to turn them off during operation. Additionally, when the machine is shut down overnight or on weekends, the lights remain on, providing higher visibility and security.

Upgrade your COBOD BOD2 3D printer with COBOD Surveillance and Lighting Kits and enjoy 24/7 monitoring, remote access to footage, and ample illumination during off-hours!

SUPPLEMENTARY EQUIPMENT

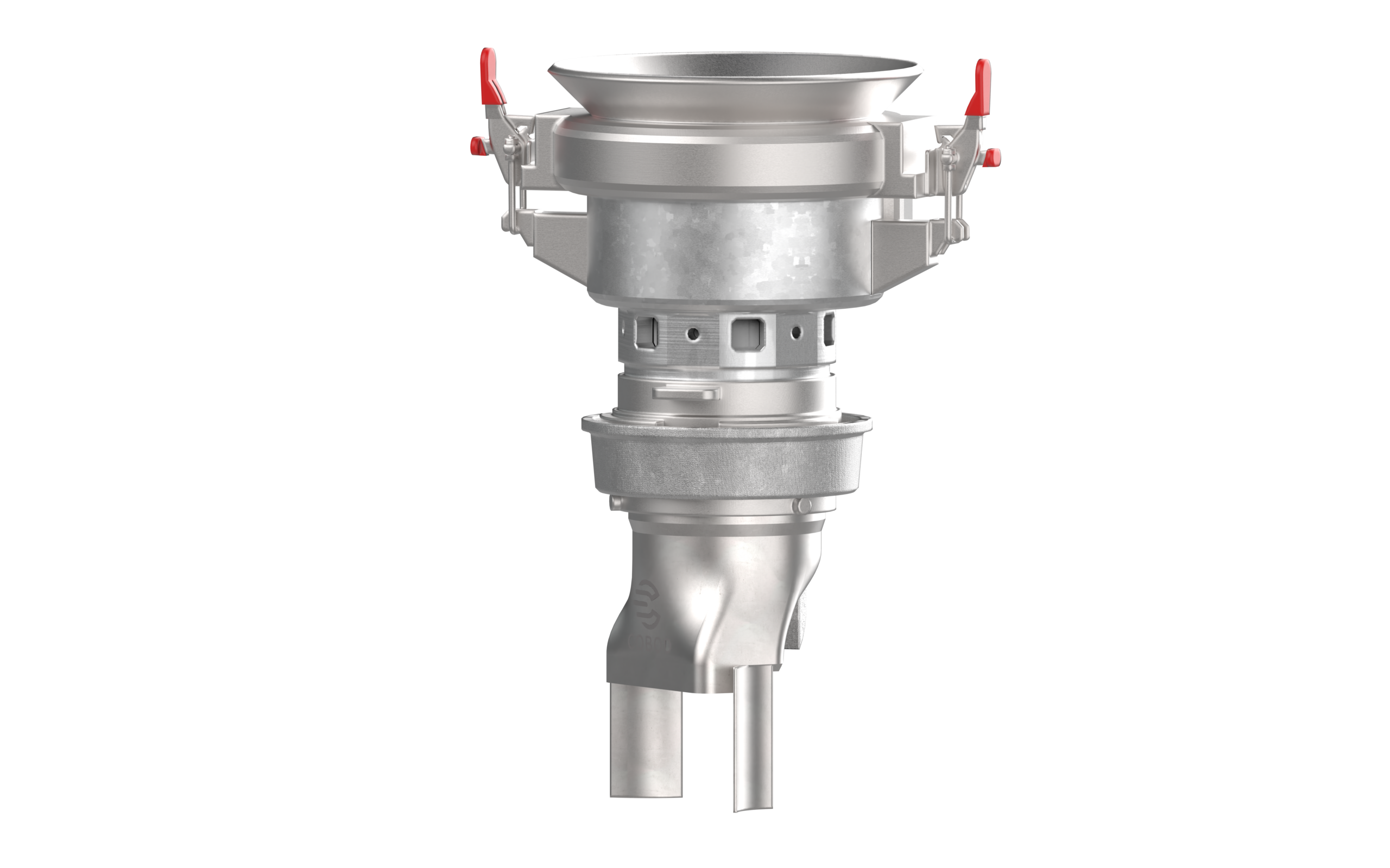

Tangential Control – Synchronized Nozzle Movement for Accurate Material Placement

COBOD Tangential control is a critical mechanical and software feature within COBOD BOD2 3D Construction Printer’s equipment, that enables precise alignment of the print nozzle with toolpath orientation during 3D construction printing process.

This dynamic rotation of the nozzle optimizes material application, contributing to improved surface quality and geometric precision. Additionally, COBOD Tangential control is especially beneficial for flap utilization, as they eliminate excess material from wall sides for a smoothed surface finish. By combining mechanical manipulation and software coordination, it guarantees accurate translation of 3D models into printed objects, ensuring that the material is applied in the appropriate direction and at the proper extrusion rate.

SUPPLEMENTARY EQUIPMENT

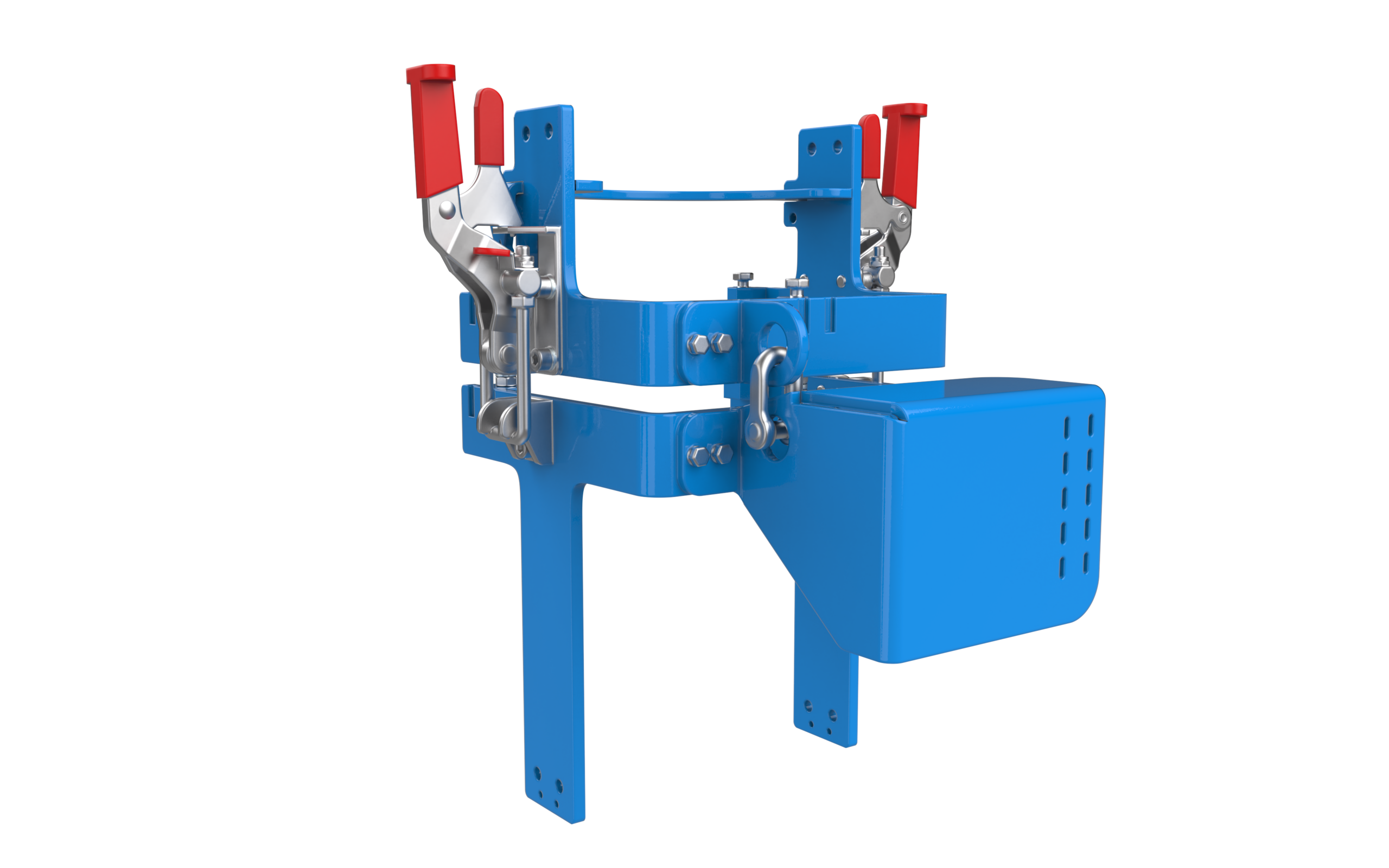

U-axis alignment kit – Ensure Consistent prints

The COBOD U-Axis Alignment Kit is a retrofit for the COBOD BOD2 3D printer, that guarantees precise nozzle alignment, maintaining consistent print quality.

The COBOD U-Axis Alignment Kit prevents nozzle misalignment during the assembly of the printhead’s bottom part. By providing consistent alignment, it allows the nozzle to be positioned in the same spot when removing and reinstalling the printhead. This functionality is particularly useful for maintenance and cleaning during mid-printing, ensuring a seamless and uninterrupted printing process without layer shifting.

Upgrade your COBOD BOD2 3D Cpnstruction Printer with our U-Axis Allignment Kit for uninterrupted prints!

SUPPLEMENTARY EQUIPMENT

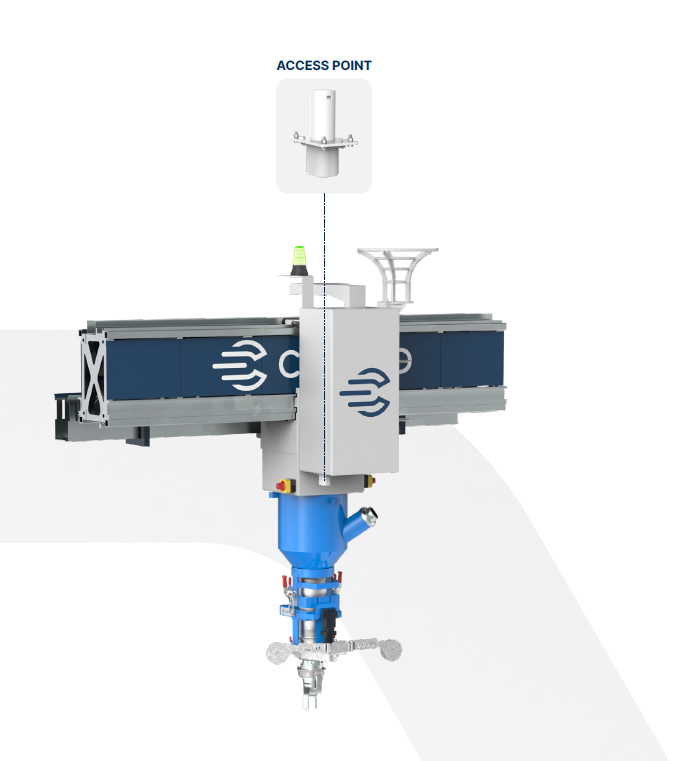

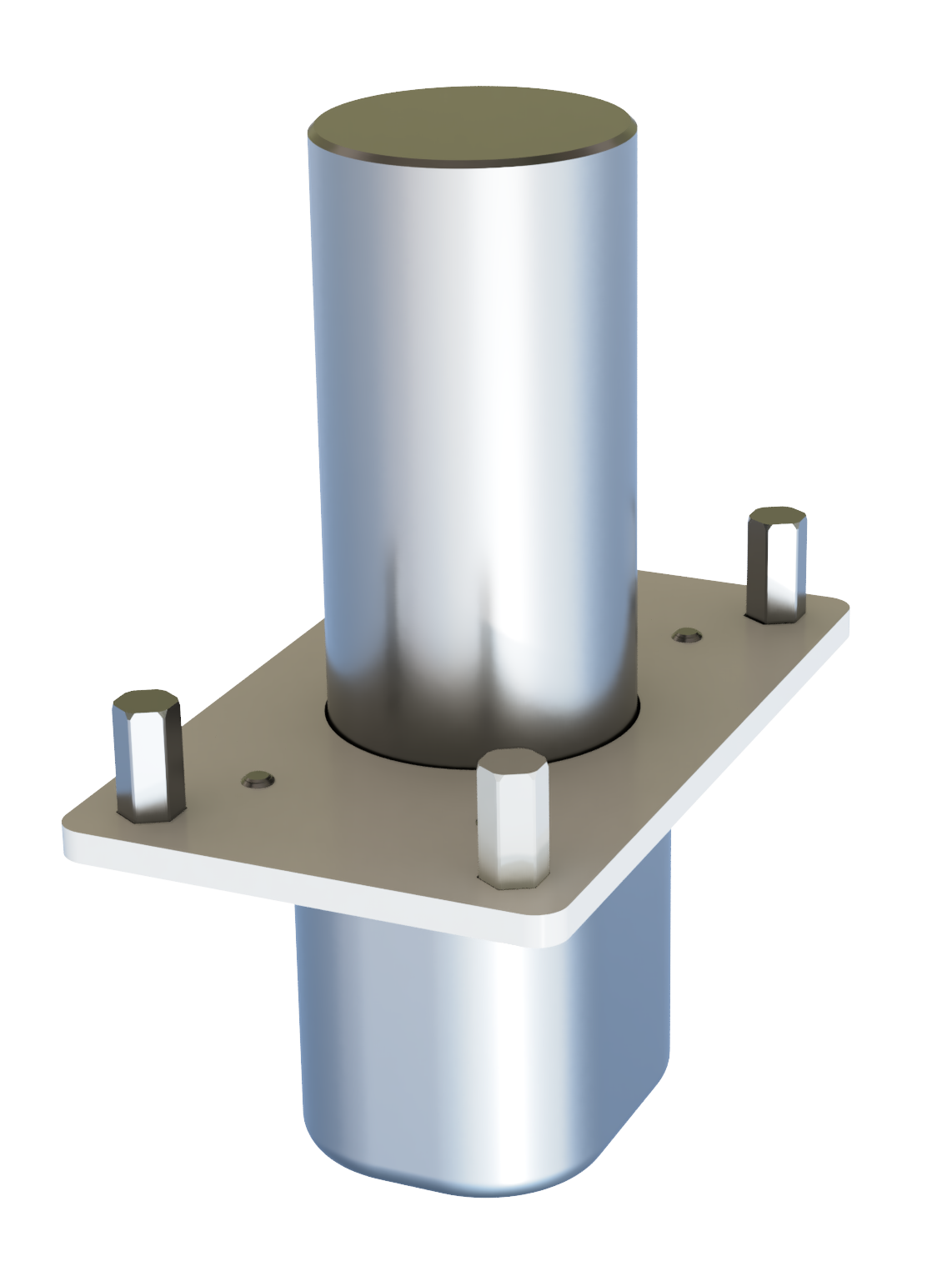

WiFi 2.0 Solution – Seamless Connectivity for Greater User Experience

The WiFi 2.0 solution is an advanced hardware upgrade for your COBOD BOD2 printer. It offers faster connection speeds and expanded signal coverage, ensuring optimal performance. Designed for easy retrofitting, it enhances signal stability and reach within the printable area. The solution supports seamless streaming from the nozzle cameras, providing clear, real-time insights into the printing process.

Positioned on the X-Main Carriage / Universal Carriage, the access point ensures consistent Wi-Fi signal strength throughout the print area, allowing for remote monitoring and operation from a greater distance.

SUPPLEMENTARY EQUIPMENT

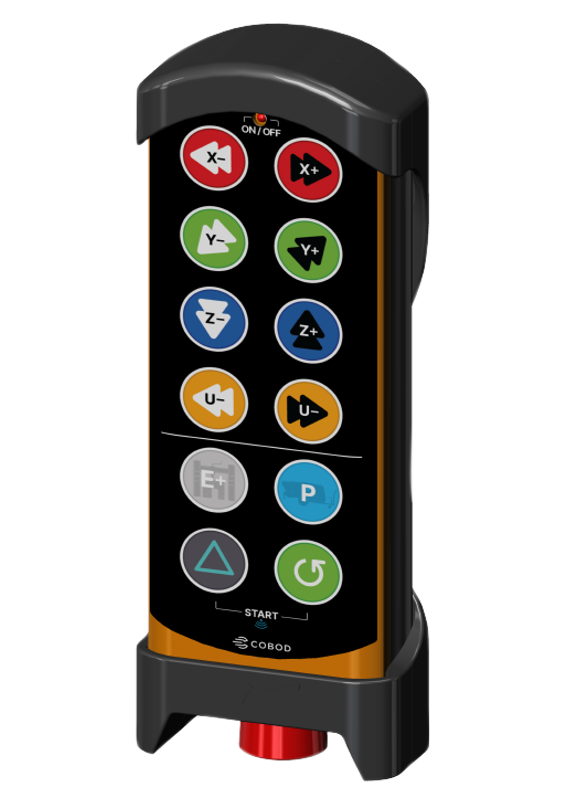

Wireless Remote Control – Efficient 3D Management

The COBOD Wireless Remote Control enhances the operation of the COBOD 3D Construction Printers by providing the operator with a direct, intuitive interface for manual control.

Its wireless design allows for unrestricted movement within the printable area, facilitating tasks such as calibrating the start position and realigning the printhead. The remote includes 12 two-step buttons and an emergency stop, enabling control over movements in the X, Y, Z, and U directions, as well as extruder and pump functions. With its robust construction and user-friendly design, the COBOD Wireless Remote Control ensures efficient and safe 3D printing operations.

COBOD TOOL KITS

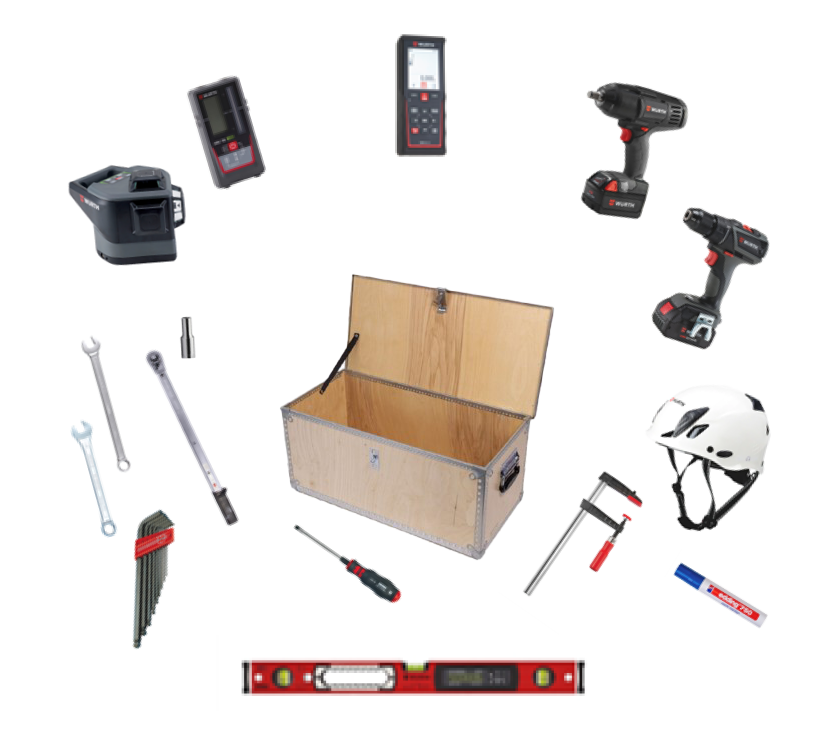

Setup & Maintenance Kit – enhancing performance of COBOD BOD2 3D Construction Printer

The COBOD Setup and Maintenance Kit is an essential toolkit for setting up and keeping COBOD BOD2 3D printer in prime condition. This comprehensive assortment of tools is carefully curated to align with technical demands, encompassing critical components essential for efficient setup and ongoing maintenance.

Encompassing precision equipment such as an alignment laser and measurer, a variety of power drills, wrenches, and a versatile bit set, this toolkit addresses fundamental tasks. Additionally, the kit integrates specialized instruments, including a 3-plane leveling and alignment laser, a digital laser distance meter, and a universal laser receiver, to enhance calibration precision.

Contained within a wooden storage box, this kit ensures the continual functioning of the BOD2 printer throughout its operational lifespan.

COBOD TOOL KITS

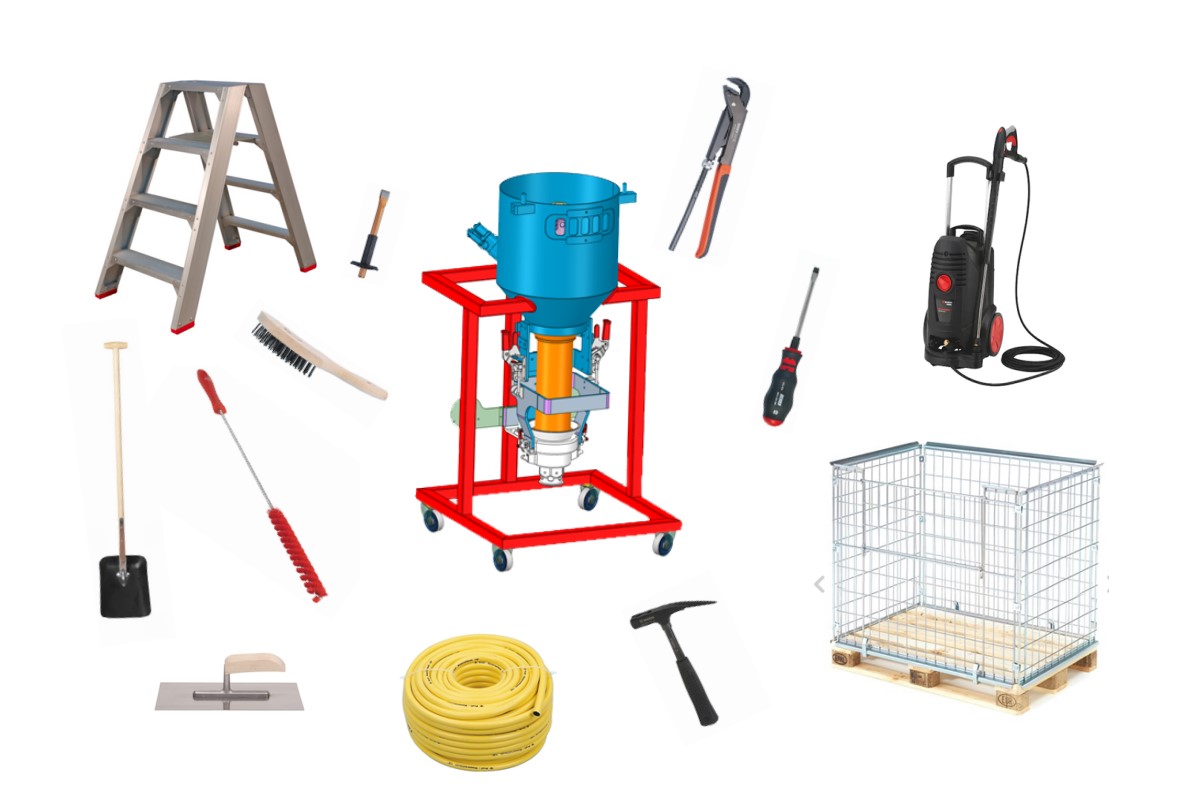

Printing Kit – Streamlining the 3D Printing Process with Essential Tools

The COBOD Printing Kit is an extensive set of essential tools, compiled to facilitate smooth print job execution. This kit provides all the equipment required to ensure an effortless printing procedure.

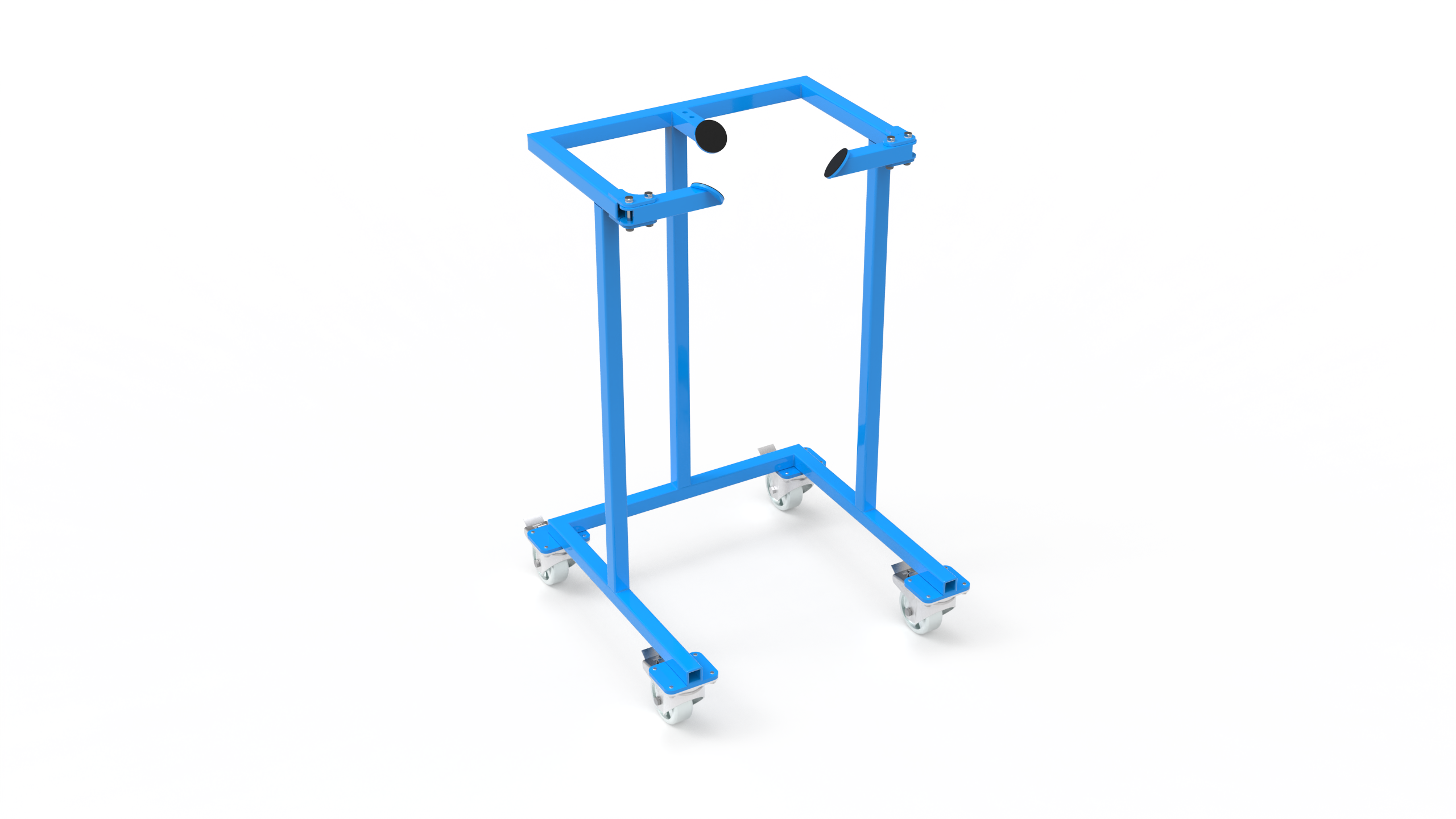

It includes a mobile printhead stand, a professional shear vane tester, and a high-pressure cleaner to cater to different requirements. Additionally, the kit incorporates a range of tools such as spatulas, brushes, hammers, wrenches, buckets, shovels, water hoses, a ladder, a crowbar, Allen key set, screwdrivers, and chisels to cover diverse tasks.

Every piece of equipment in this set guarantees that print jobs are completed efficiently and promptly, giving users everything, they need for creating high-quality prints.

COBOD TOOL KITS

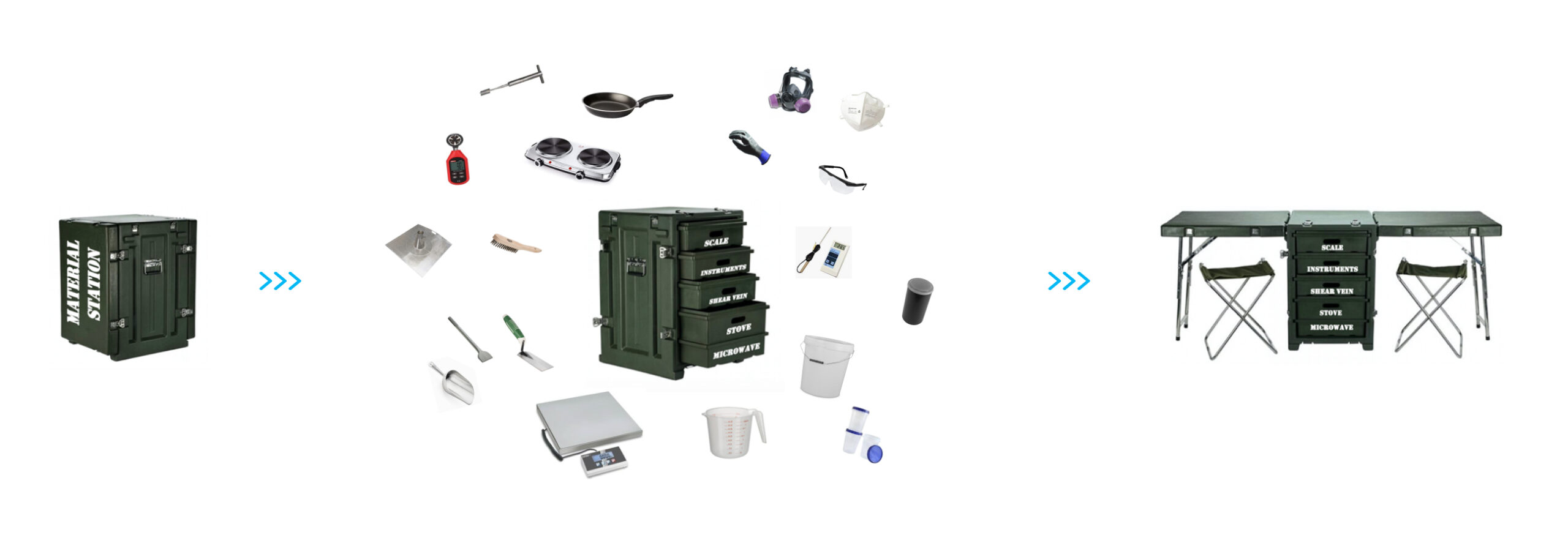

Materials testing kit – Optimizing Material Mix

The Materials Testing Kit is a toolbox, serving as a comprehensive materials workstation. Its primary mission is to guarantee that the locally-sourced concrete used in the COBOD BOD2 3D printer meets the exacting requirements of the printing process.

This kit unfolds as a fully-equipped on-site workspace, alleviating the challenges of sourcing specialized equipment locally. It empowers users with the ability to test, assess, and fine-tune the concrete mixture with ease.
